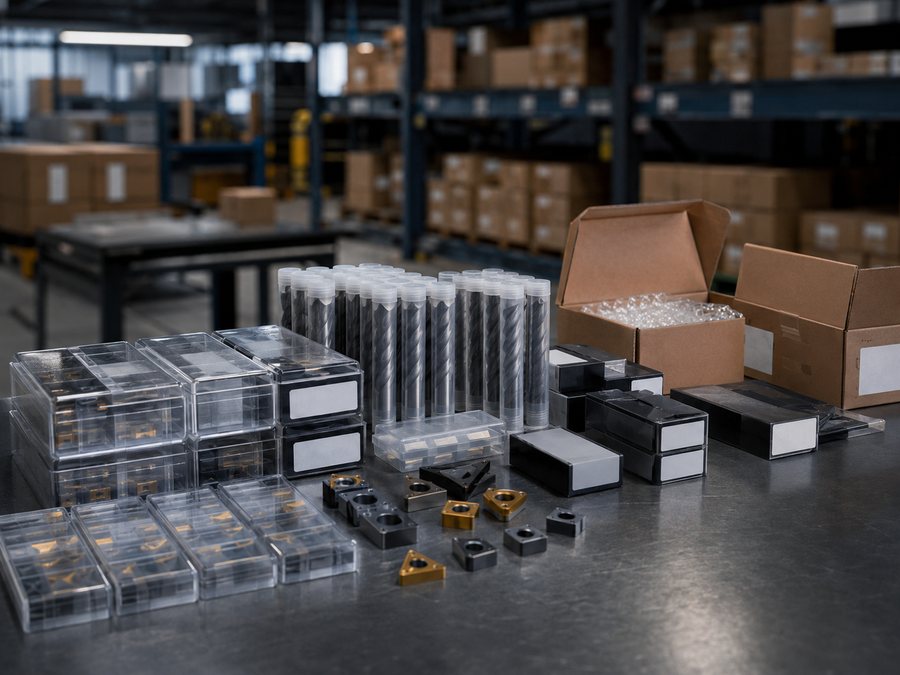

Carbide tool manufacturing & sourcing · OEM packing
WhatsApp: +86 17745168691 | Qinghe, Xingtai, Hebei, China

How your inserts are made

From powder to inspection — the production chain behind CarbideAxis inserts, shown in real footage, not renders. The film below follows the full chain in order: milling, spray drying, pressing, sintering, grinding, cleaning, coating and inspection.

From powder to finished insert: milling, spray drying, pressing, sintering, grinding, cleaning, coating and inspection — filmed in the workshops that supply CarbideAxis orders.

The chain, in order

  1. Ball milling
  2. Spray drying
  3. Pressing
  4. Sintering
  5. Face grinding
  6. Peripheral grinding
  7. Cleaning
  8. PVD coating
  9. CVD coating
  10. Zeiss metrology centre and mould room
  11. Precision inspection (Alicona)

From powder to finished insert

Each stage below is a stage in the film, in the same order.

Powder and forming

1

Ball milling

Carbide powder is milled and blended first, so pressing starts from a consistent, well-mixed powder.

2

Spray drying

Spray drying prepares the carbide powder granules that go into pressing.

3

Pressing

The granules are pressed into blanks in the shape of the finished insert — the form every later step refines.

4

Sintering

Pressed blanks are sintered into hard carbide, the step that gives the blank its hardness.

Grinding and cleaning

5

Face grinding

Face grinding brings the insert's top and bottom faces to size and finish.

6

Peripheral grinding

Grinding shapes the insert. The peripheral grinding footage shows automated loading — a robot arm handling a full tray of triangular inserts.

7

Cleaning

Ground inserts are cleaned before coating, so coating starts from a clean surface.

Coating

8

PVD coating

In PVD coating, racks carry several insert shapes through one batch — one frame in the film shows the batch and the shape range together.

9

CVD coating

CVD coating runs as its own furnace process; the film shows both coating routes used in the chain.

Metrology and inspection

The chain ends with measurement. The film visits the mould room and the Zeiss coordinate measuring centre — the footage shows the centre's room and signage — and closes with optical precision inspection.

10

Zeiss metrology centre and mould room

The tour includes the mould room and the Zeiss coordinate measuring centre that supports dimensional checks.

11

Precision inspection (Alicona)

The inspection footage includes an optical measurement system (Alicona), used to check edges and surfaces up close.

Know what is being supplied before you order

Manufacturing and sourcing requirements depend on the product. For your selected models, confirm the production route, grade, packing and documents as part of the quotation.

Manufacturing requirements

Provide the full code or drawing, application and critical dimensions. Agree sample approval and inspection needs for the selected product.

Broader supply requirements

For mixed model lists, confirm the complete specification, quantity, packing and available options item by item.

Repeat-order requirements

Use the previous order reference and accepted sample details. Reconfirm grade, quantity, labels and delivery requirements before reordering.

Are you a manufacturer or a trading company?

CarbideAxis combines manufacturing and trading. Send the models or drawings you need so we can check specifications, supply options and order requirements.

What can I check before placing a batch order?

Confirm the full product specification, sample requirements, agreed inspection documents, packaging and delivery terms. Requirements vary by model and project.
